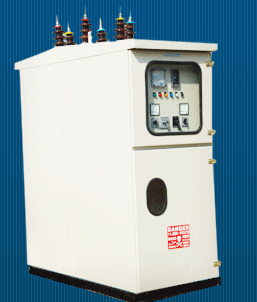

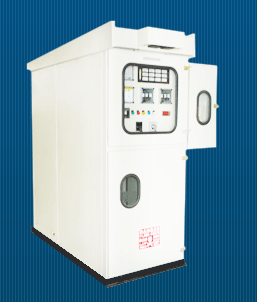

vacumm circuit breaker panel outdoor

  VCB Outdoor Drawing

We offer wide assortment of outdoor vacuum circuit breaker (VCB) which are made to be directly installed on a plinth. Power supply for these can be taken through roof bushing or cable box or a combination of roof bushing and cable box.

Earthing Options : Following points details about earthing options:

  • Earthing through a draw-out earthing truck with solid links on the bus bar/feeder side
  • Integral earthing switch slow closing type or with making capacity

  Scope - Autoscan

SCOPE make PC based C.B. Test System Autoscan is the ultimate tool to ensure the quality of all types of breakers before they leave the factory.

This test system contains various 19” DIN standard modules, which electrically tests all types of breakers VIZ : LV, HV & EHV for all critical parameters.

Once the breaker is connected, the system operates it and simultaneously Measures, the following parameters, which then can be Analysed, Recorded and Stored for future references.


  • Closing and Tripping coil currents
  • Closing and Tripping times with bounce measurement
  • Auxilliary contact timings
  • Closing and Tripping speeds
  • Contact gap and snatch gap
  • Damping related parameters like Overshoot, Rebound etc.

The software feature of pre programmed limit check for all above parameters helps operator to monitor the health of the breaker under test and to make it ready for its final installation at switchyard.
